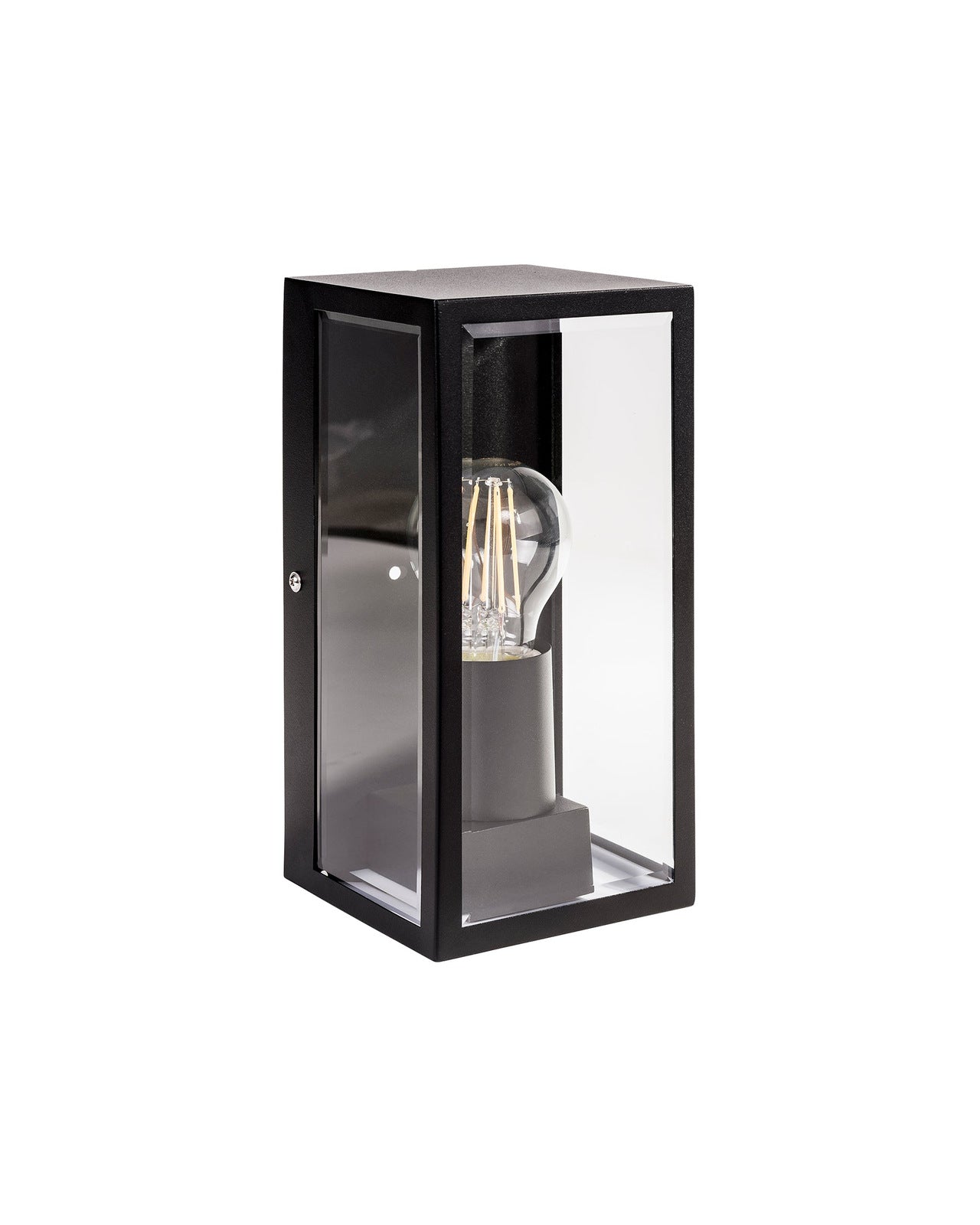

Small black box wall light turned to show the glazed side return and the depth of the frame

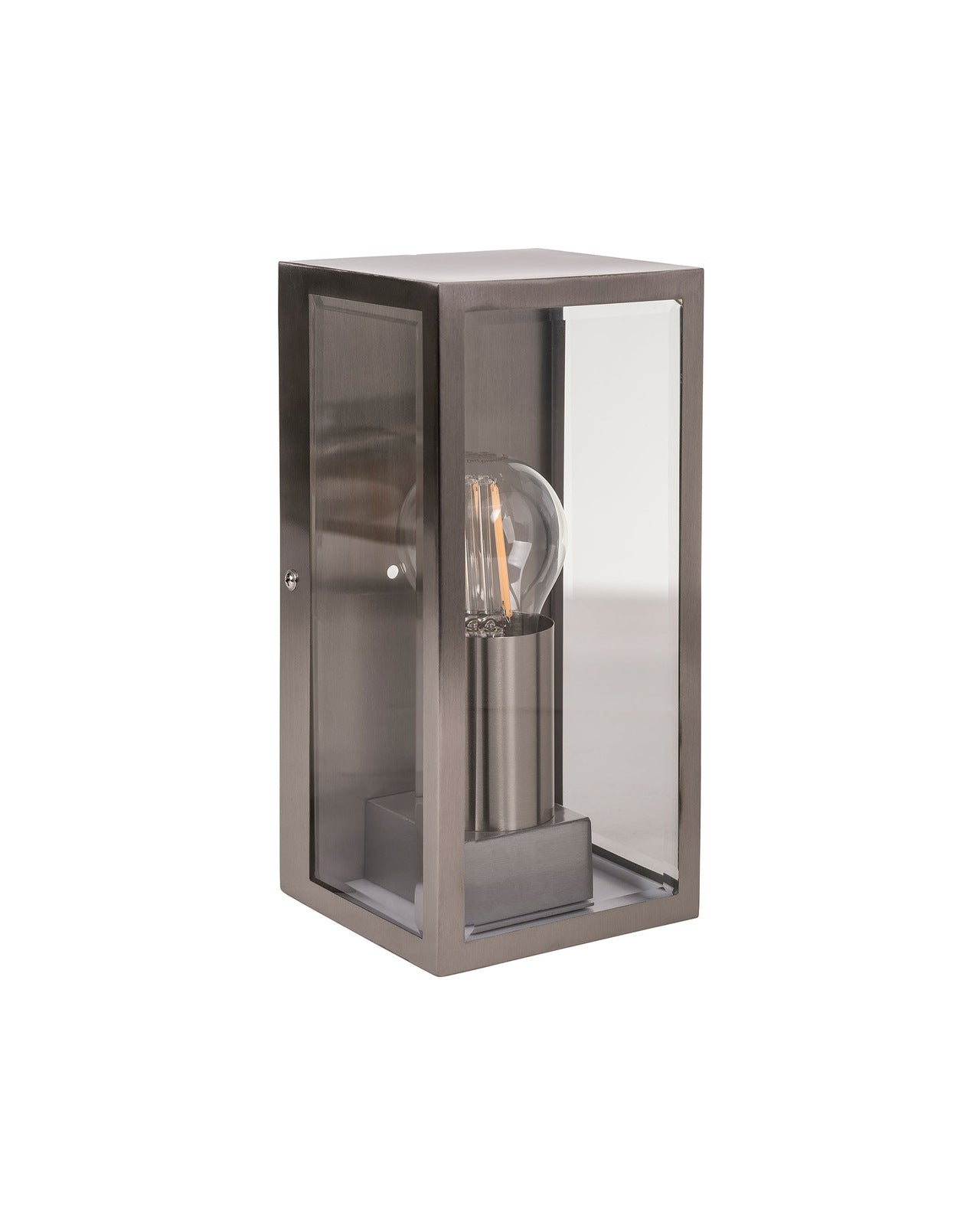

Brushed stainless box light at an angle, showing how the glass wraps around three sides

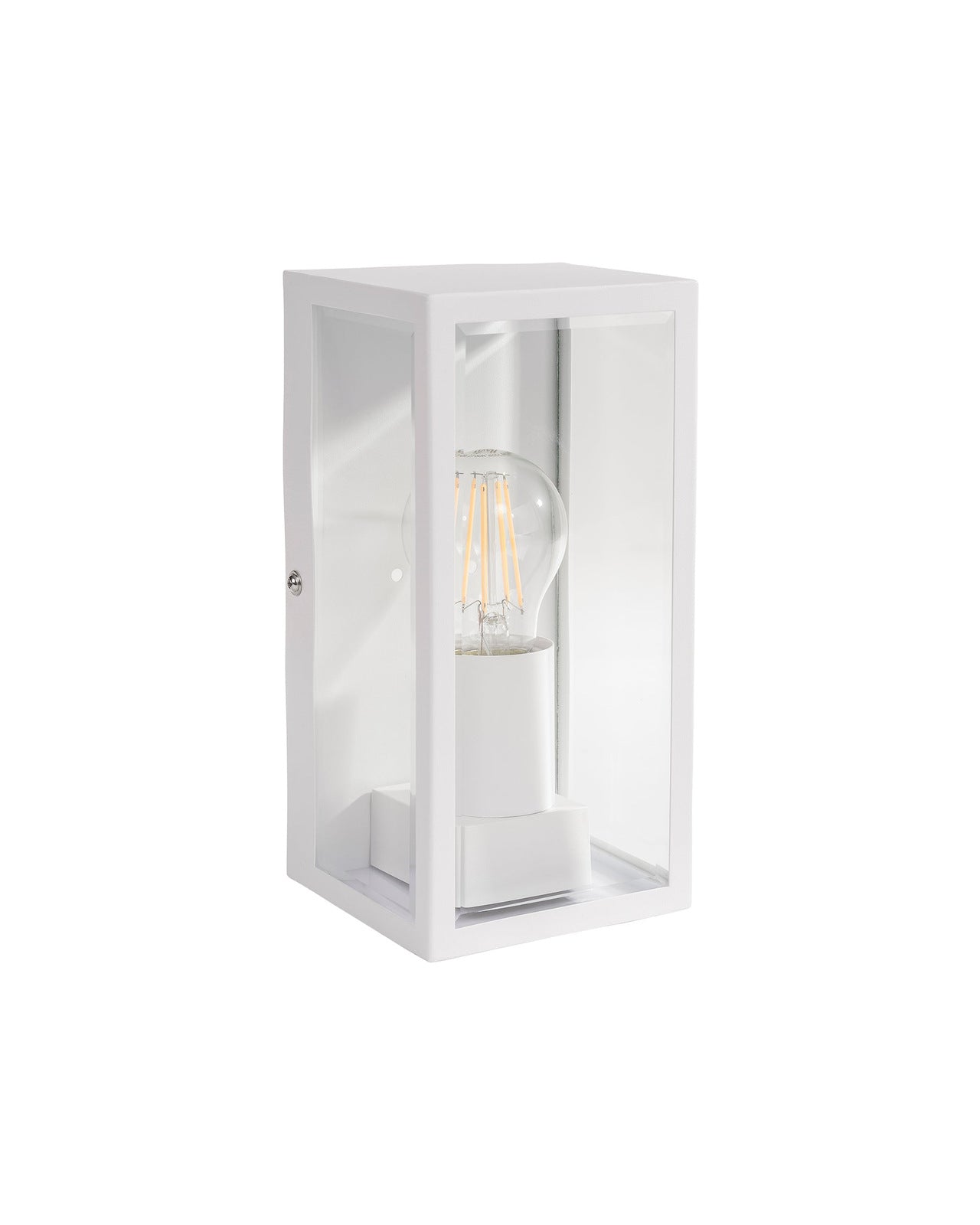

White box wall light viewed from the side, showing the glazed return and shallow welded frame

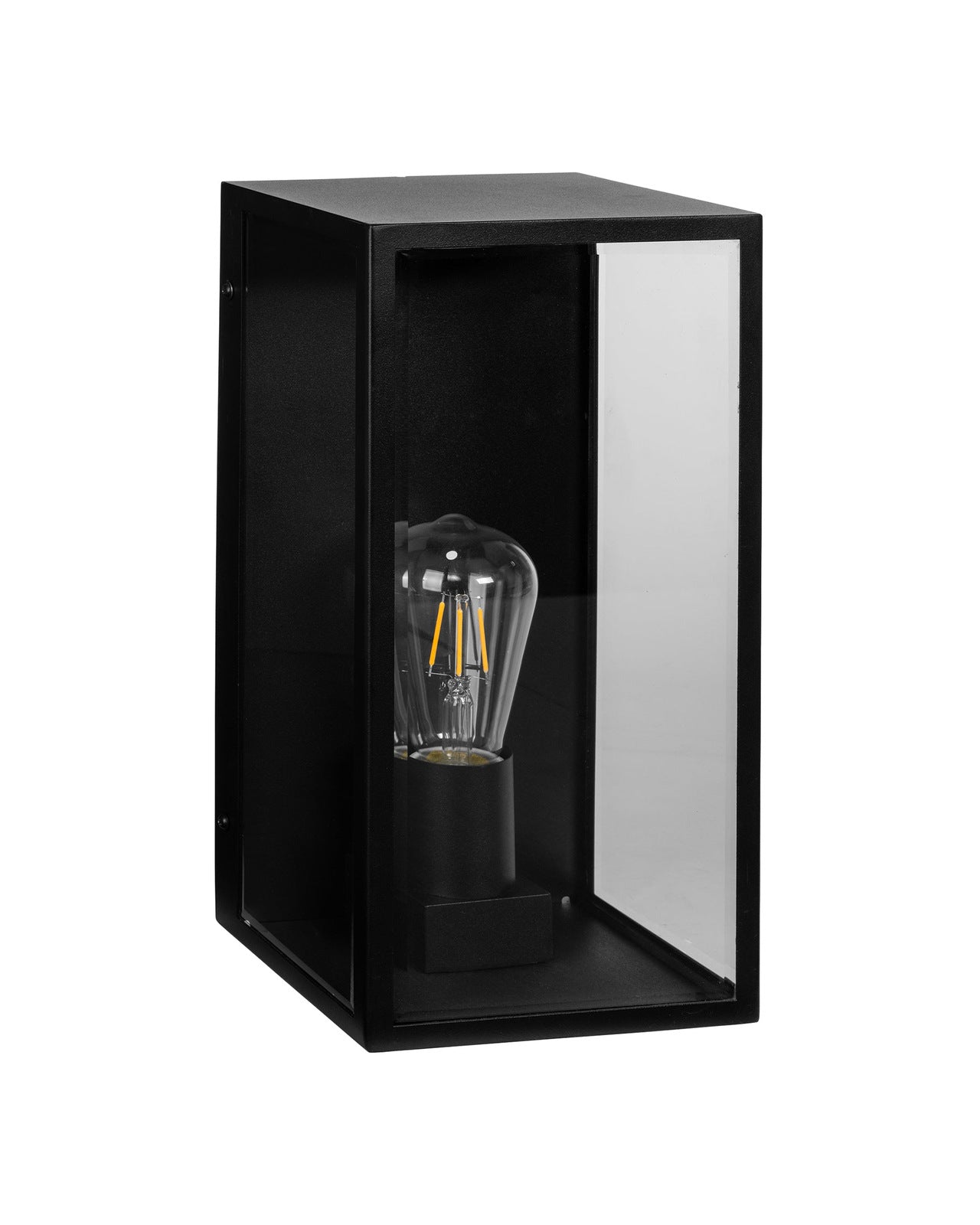

Large black box lantern at an angle, showing its deeper 150mm projection from the wall

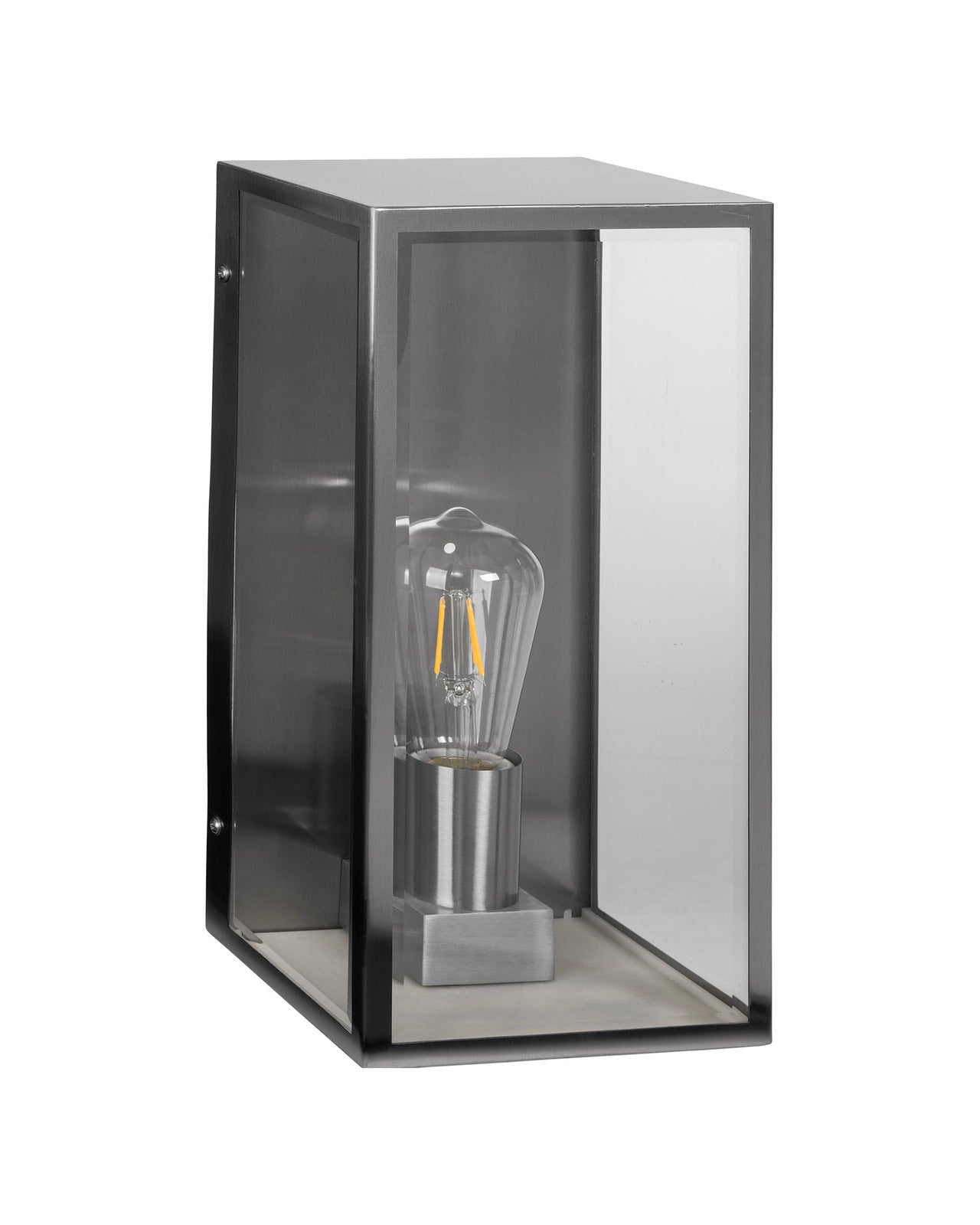

Brushed stainless box light in the large size, turned to show the full depth of the box

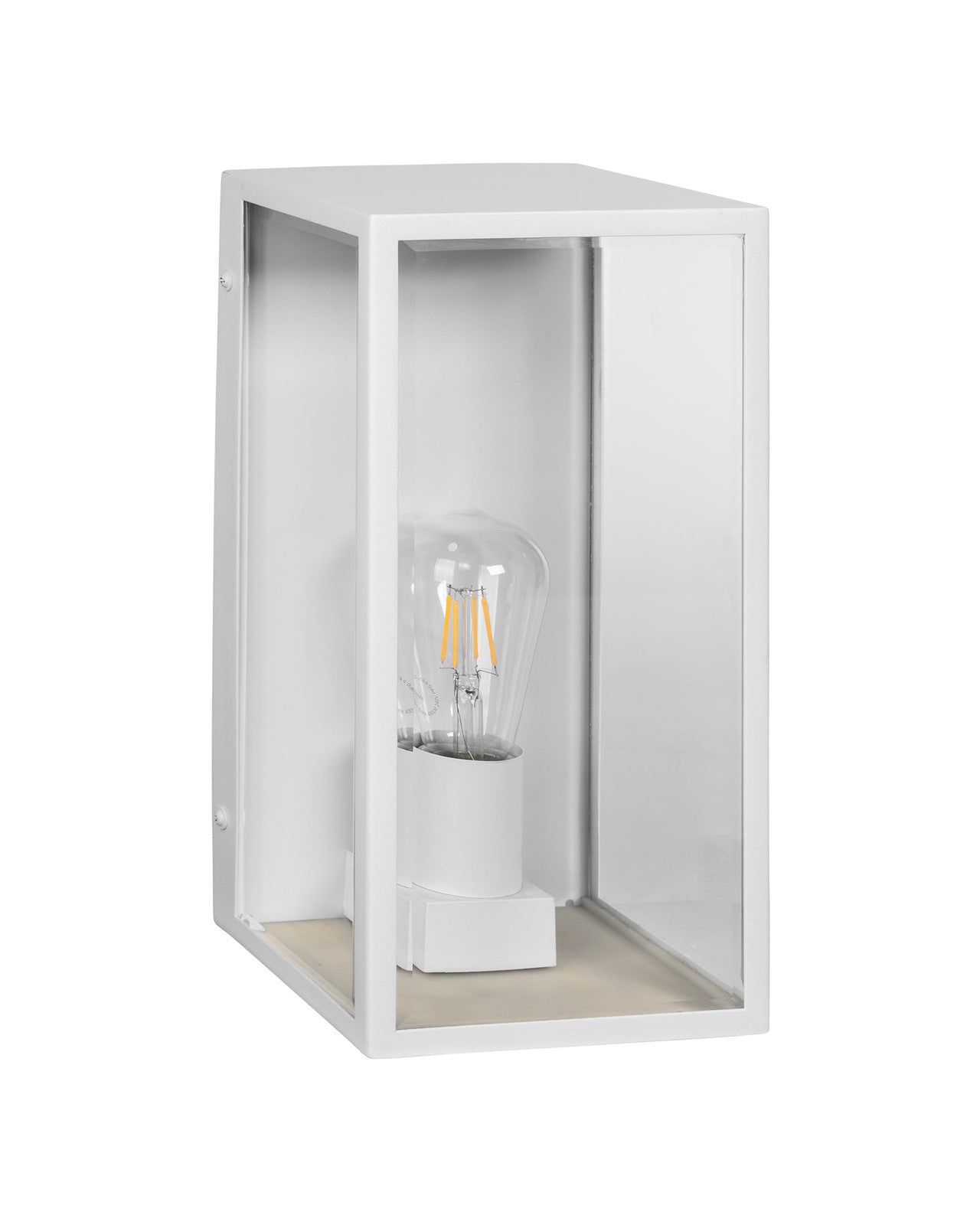

White box lantern in the large size, angled to show the glazed side and welded corners

Black lamp holder and plinth inside the small box lantern, set against the solid back plate

Stainless lamp holder rising from the base plinth against a brushed metal back plate

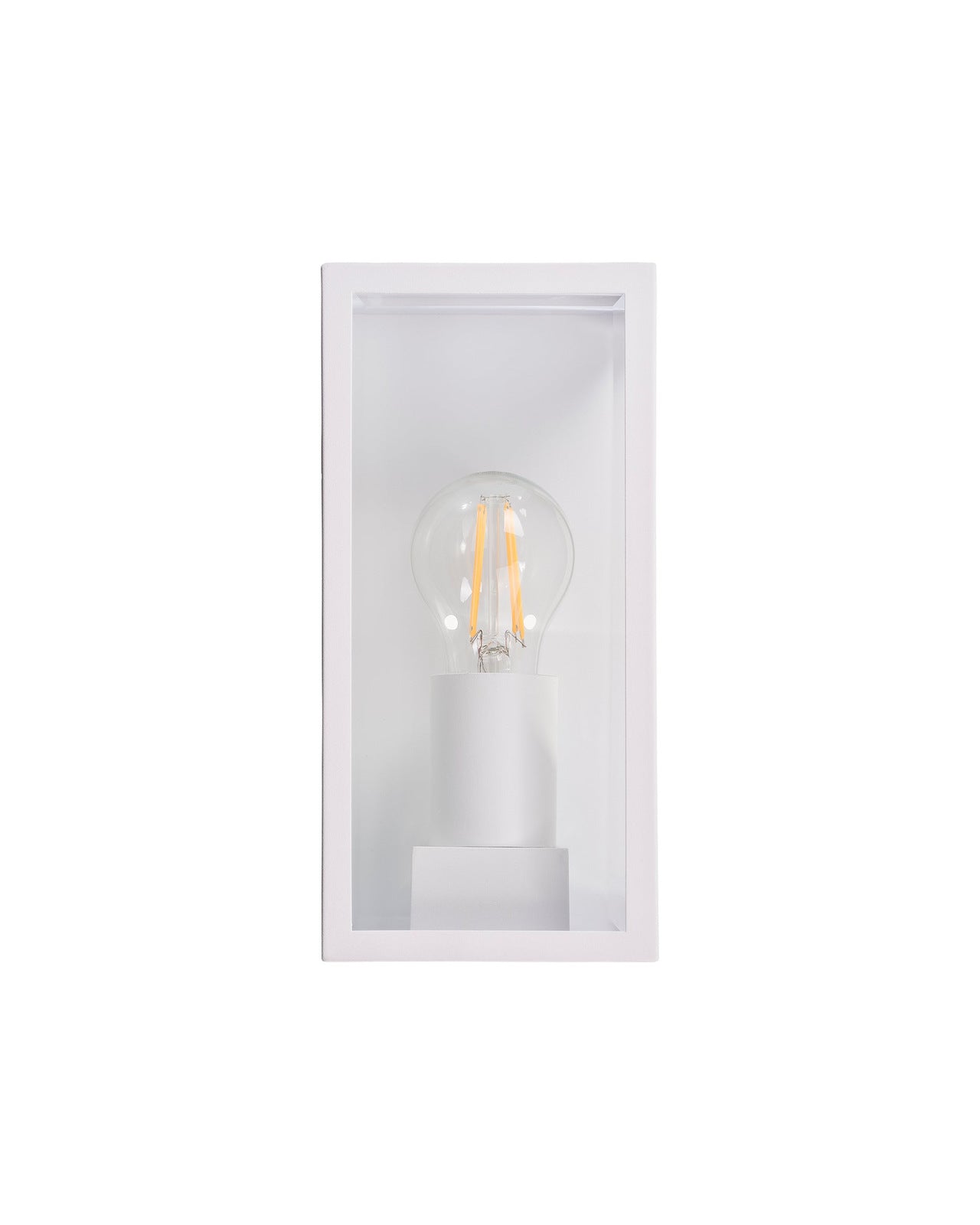

Small box wall lantern in white, its slim frame outlining clear glass on three faces

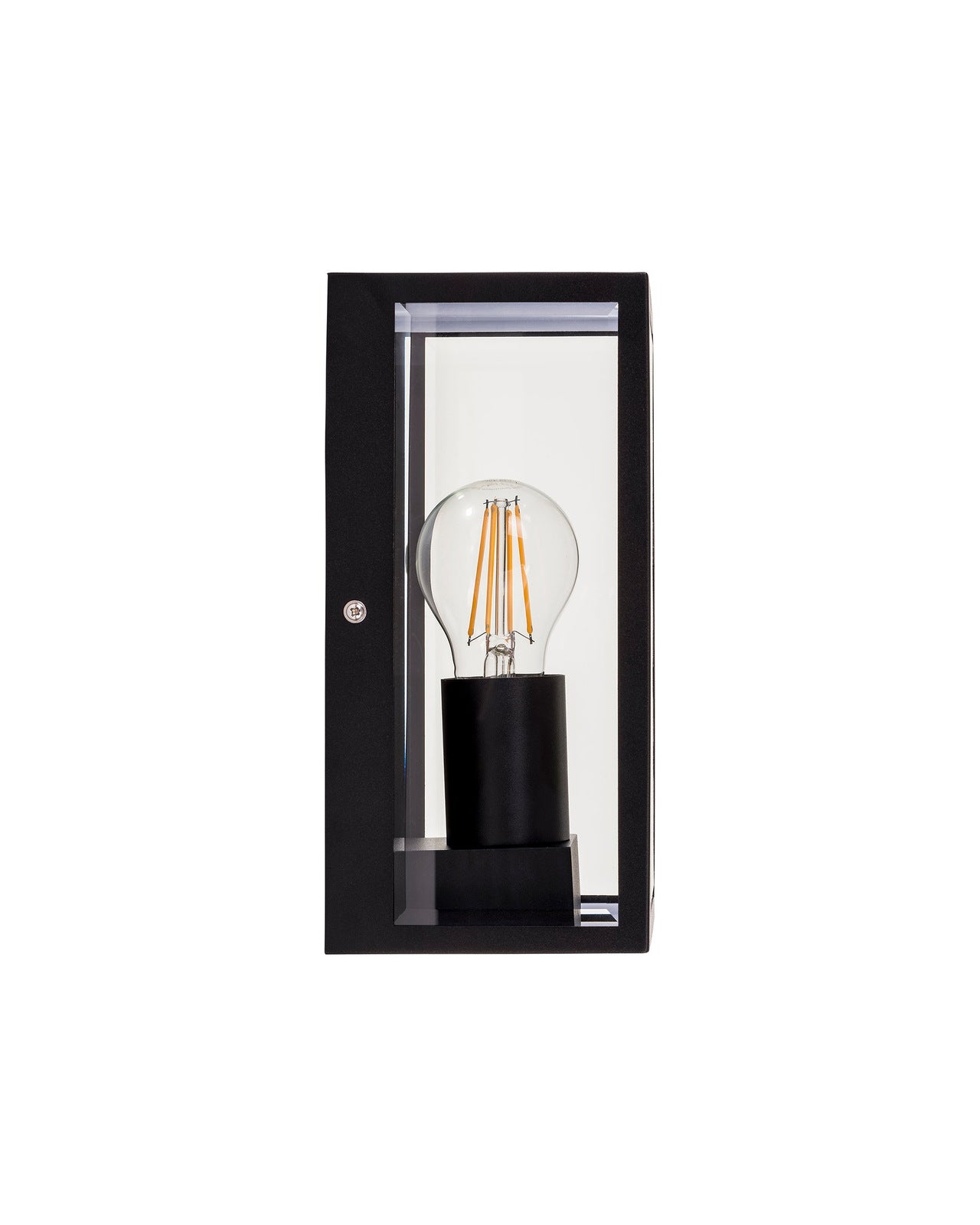

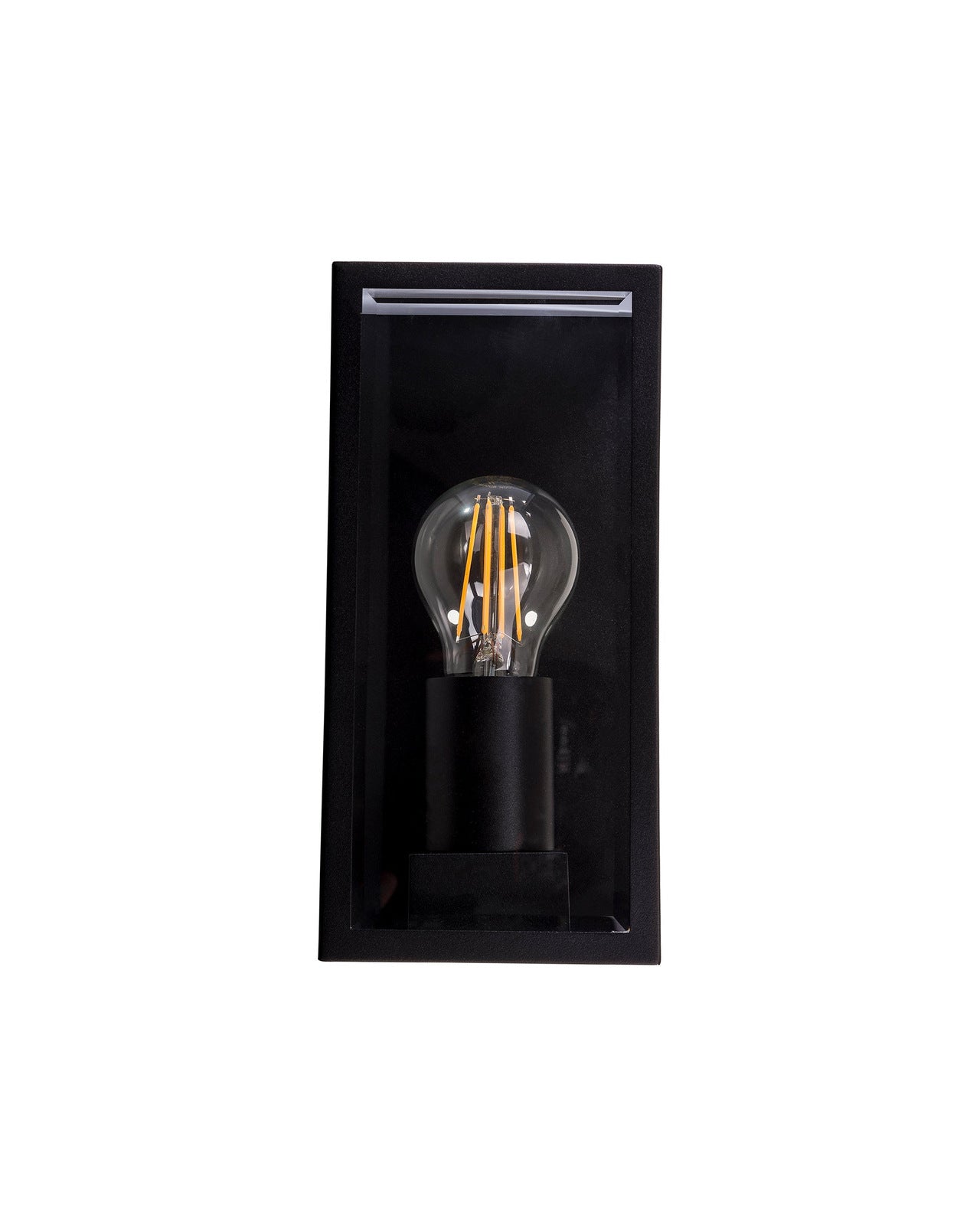

Outdoor Box Wall Light in black, a small glazed stainless steel lantern with the filament globe on show

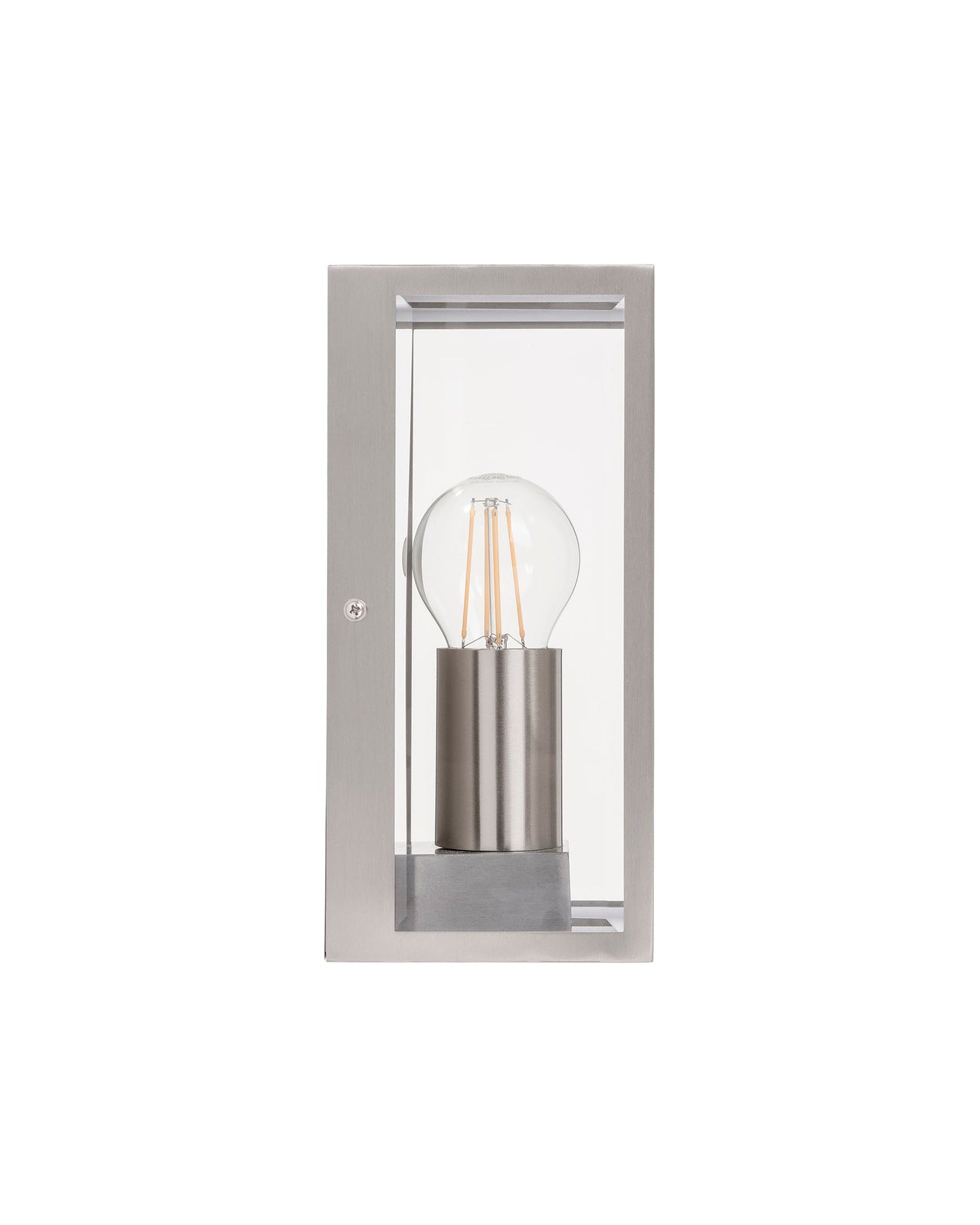

Small box wall lantern in brushed 316 stainless steel with clear glass on the face and returns

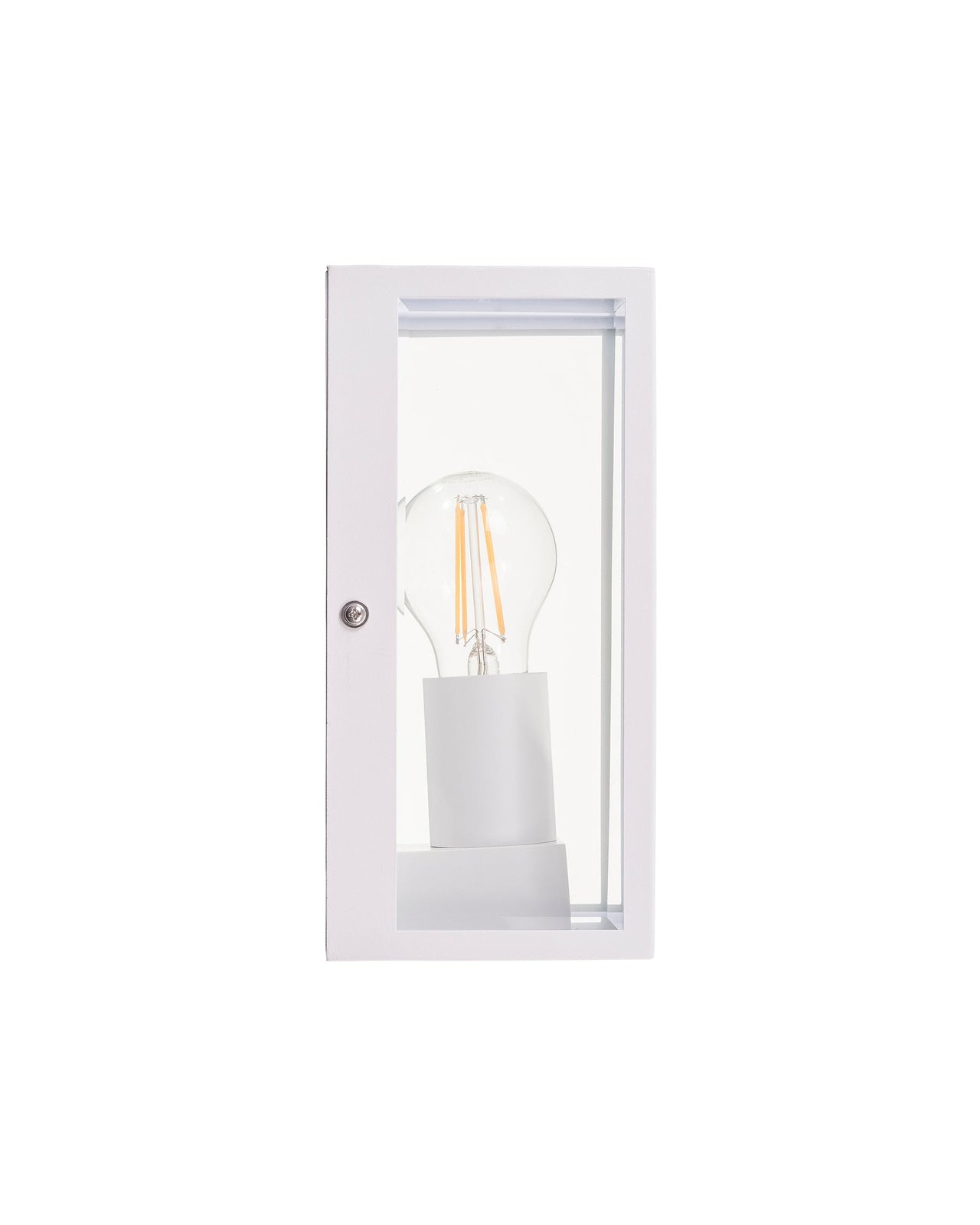

Fixing screw and white lamp holder detail on the small glazed box lantern

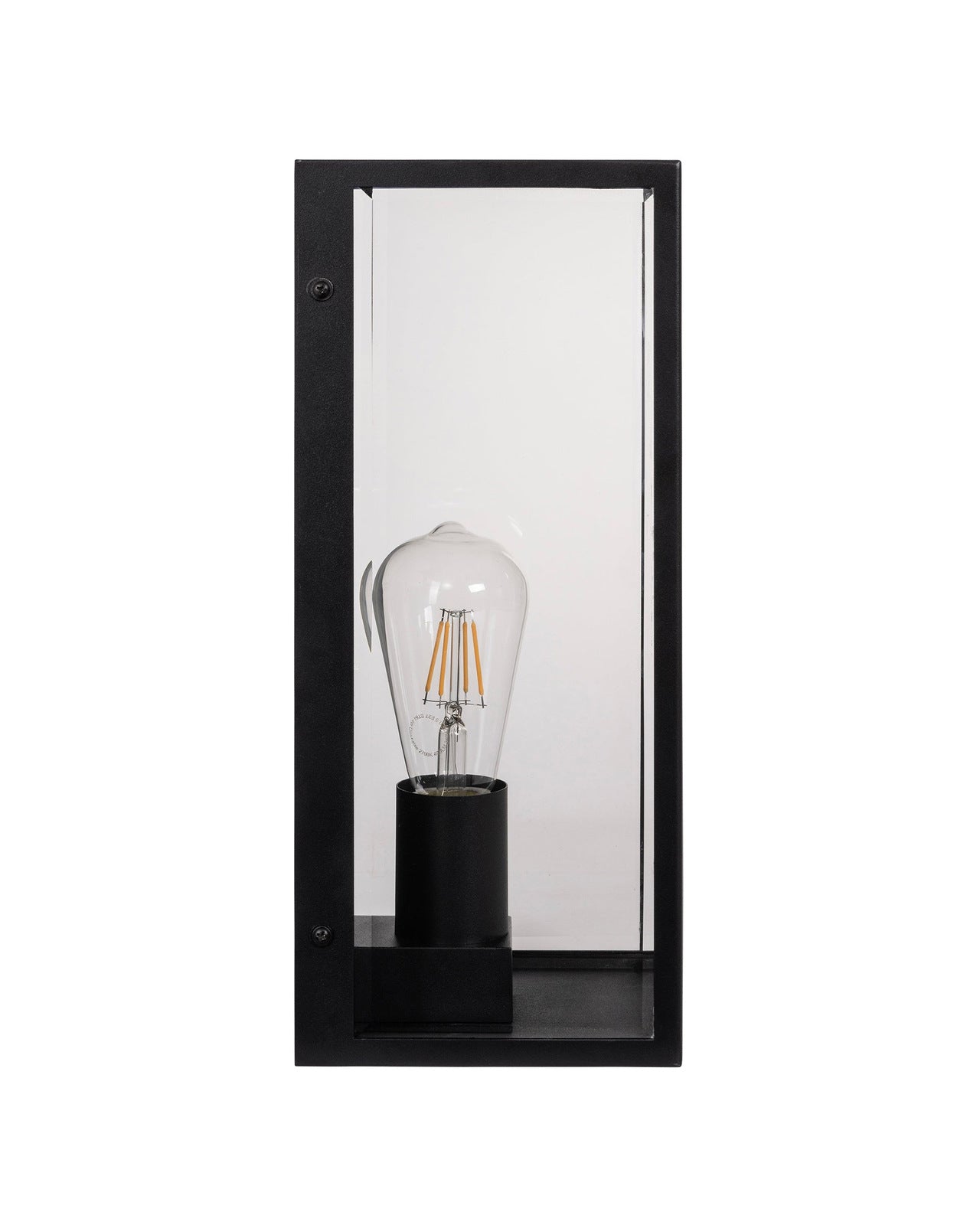

Outdoor Box Wall Light in black, the large size, with a taller glazed frame around a filament globe

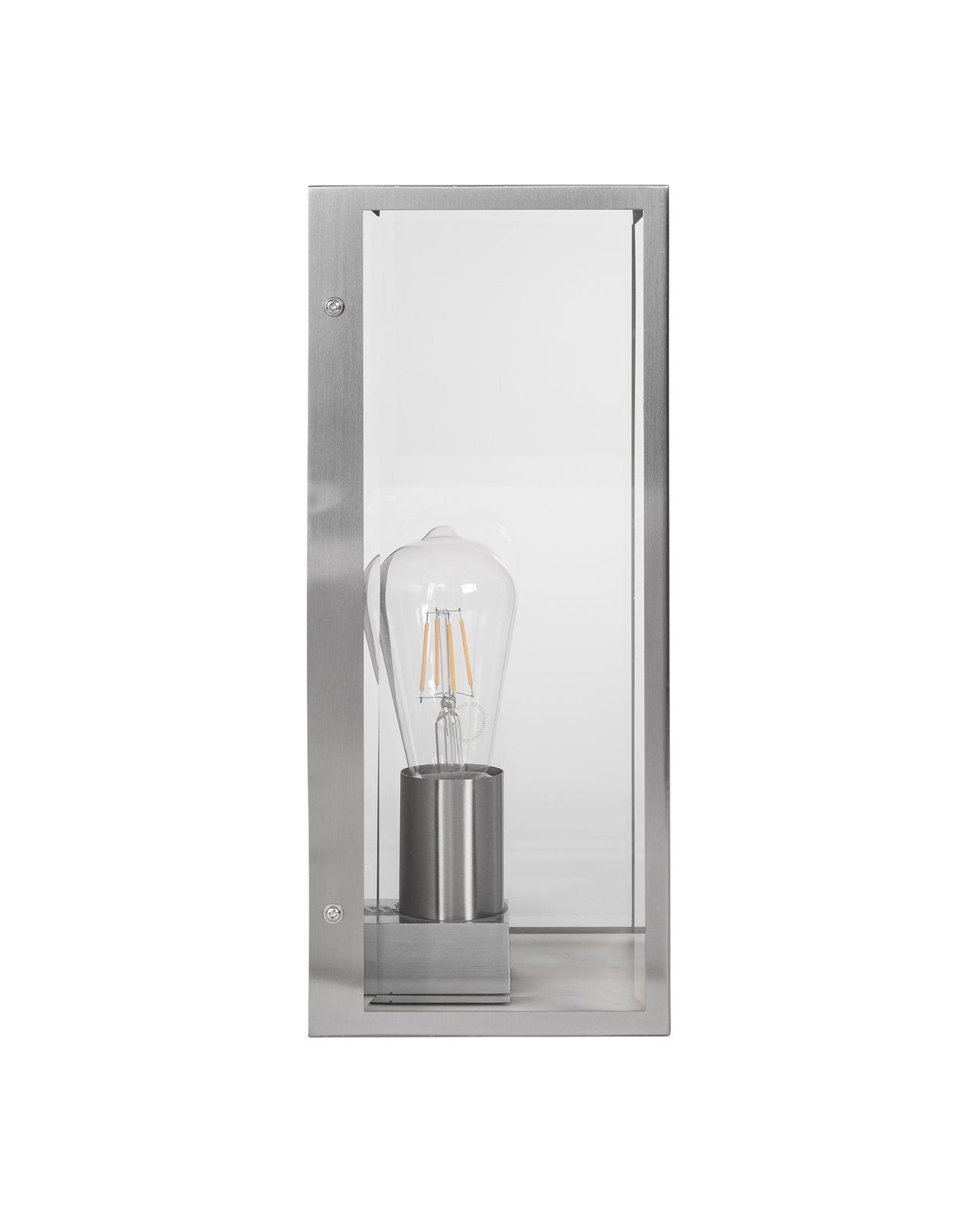

Large box wall lantern in brushed 316 stainless steel, 350mm tall with clear glazing

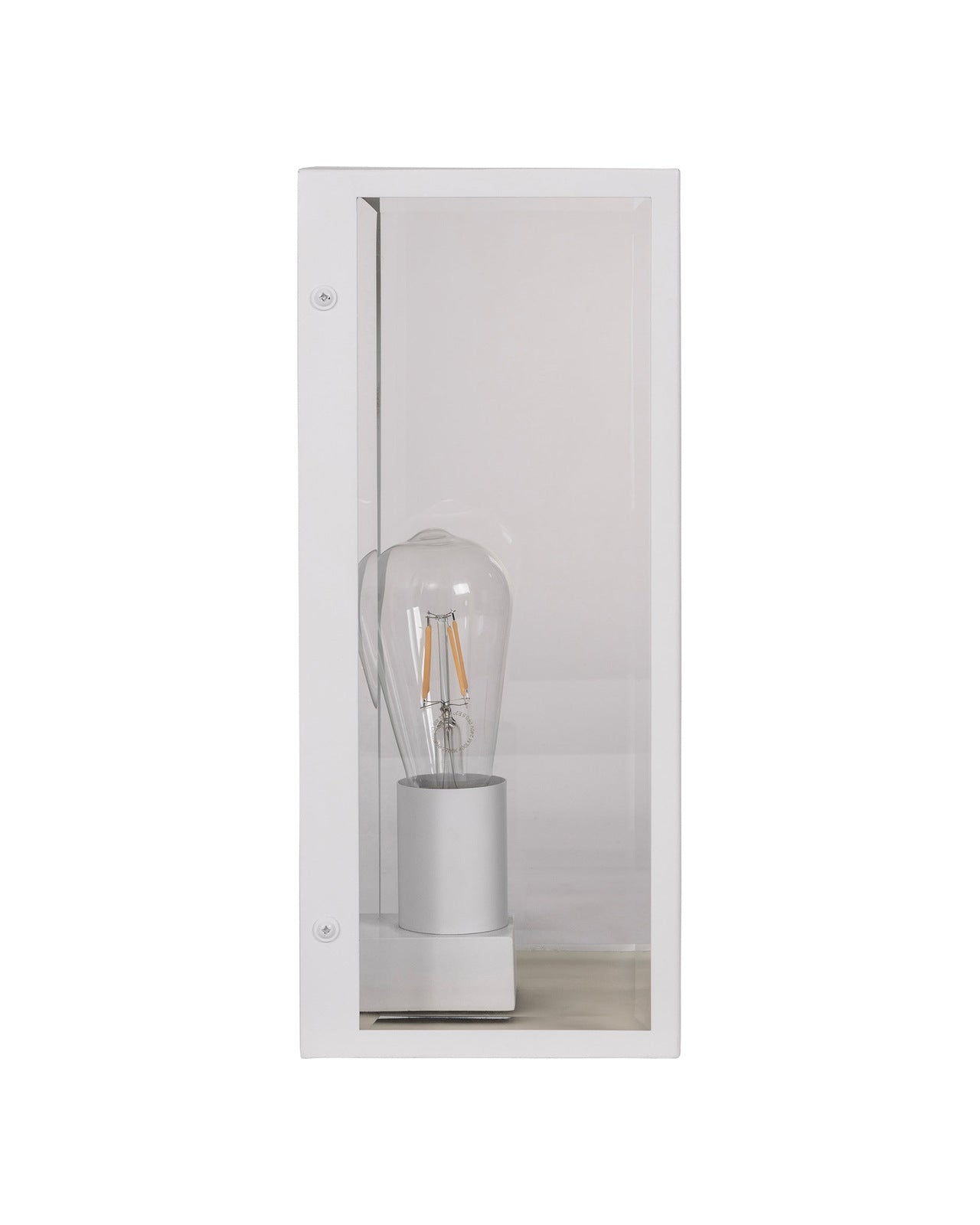

Large white box wall lantern, 350mm tall, with the lamp holder set low in the frame

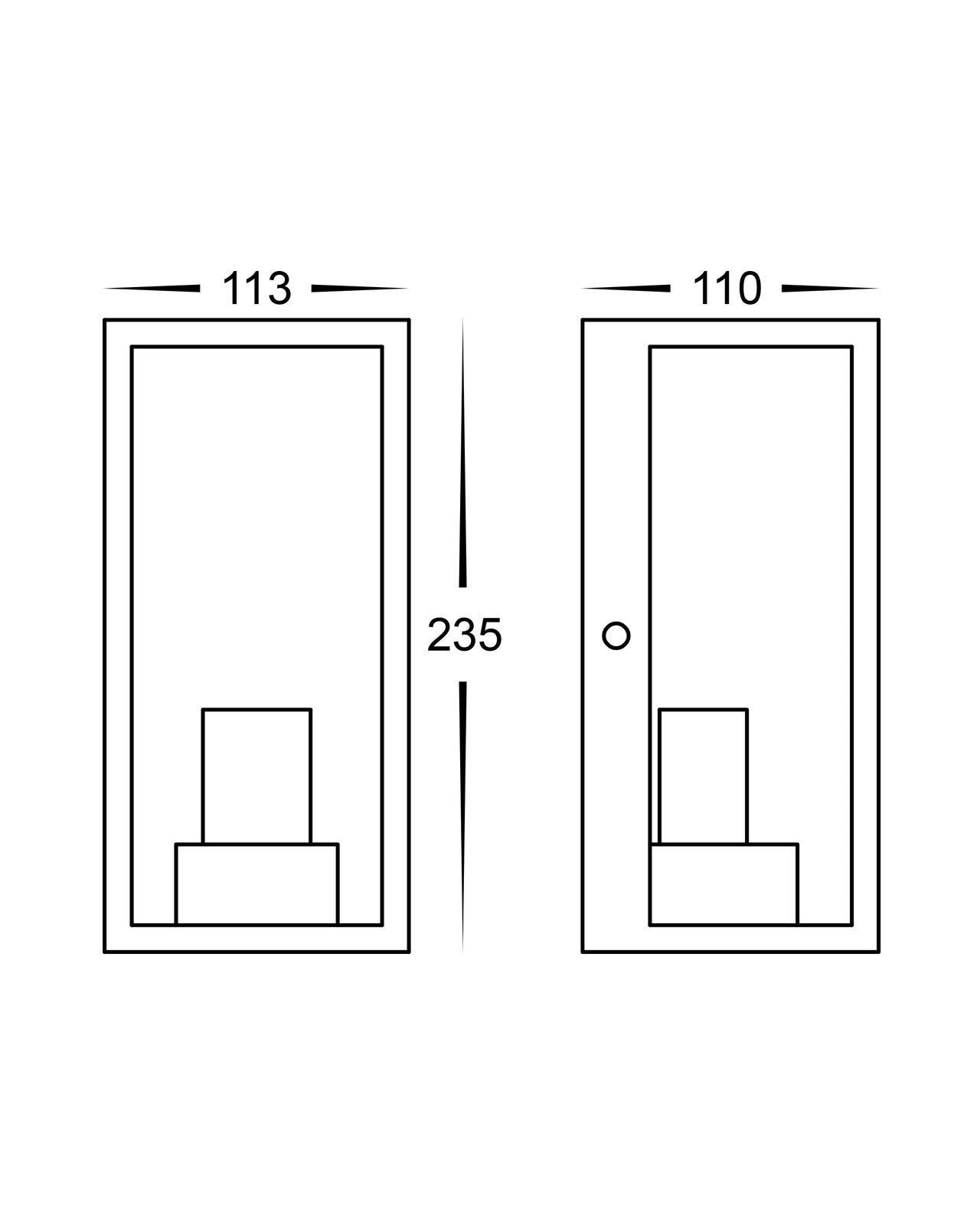

Dimension diagram for the small box wall light showing 113mm width, 235mm height and 110mm depth

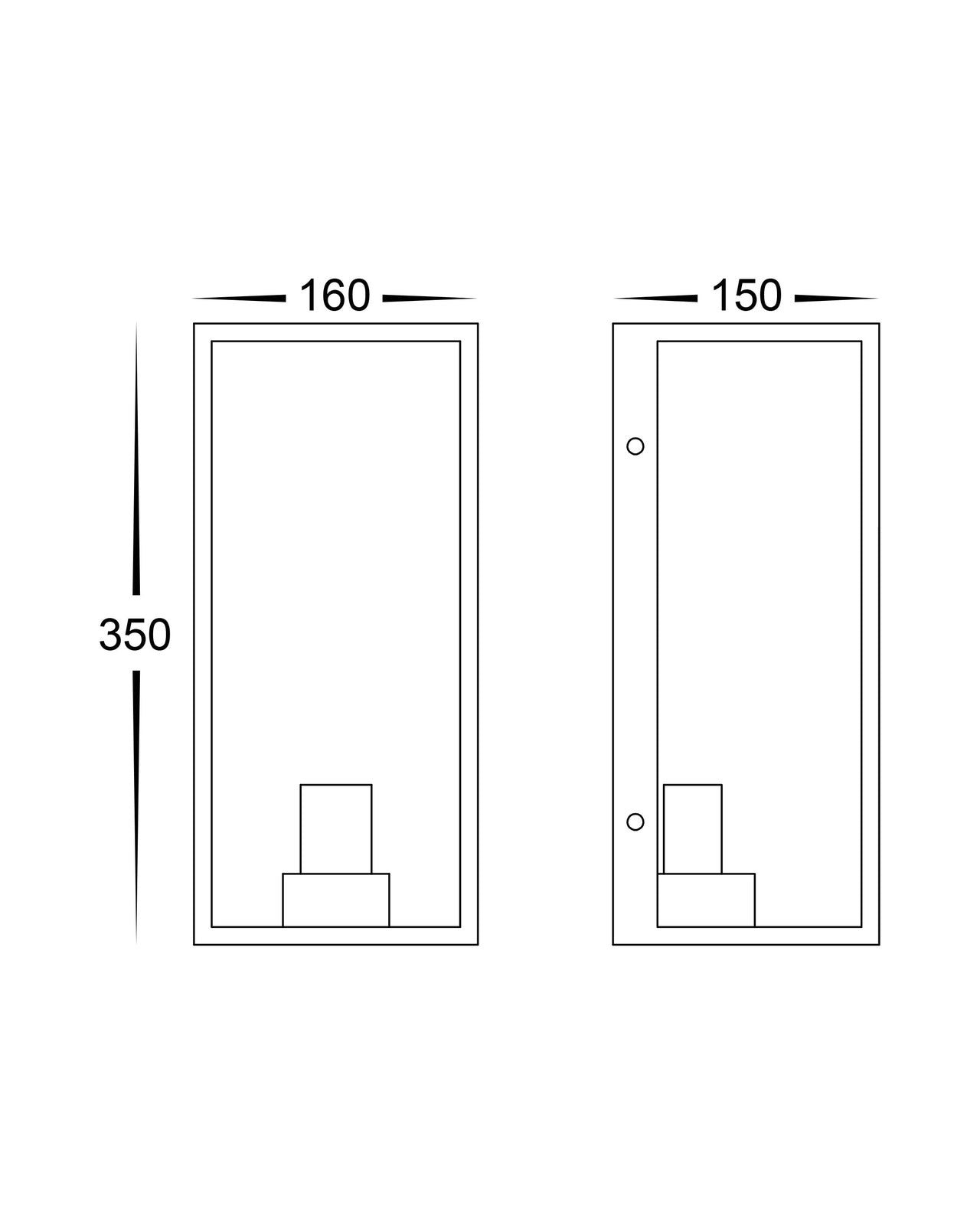

Dimension diagram for the large box wall light showing 160mm width, 350mm height and 150mm depth

Outdoor IP54 Box Wall Light

$158.00 NZD

Size:

Small

Large

Finish:

White

Black

Stainless Steel

Standard Lead Time: 1 - 2 Weeks

Quantity

[{"id":44518721060977,"title":"Small \/ White","option1":"Small","option2":"White","option3":null,"sku":"HVT316WL - 001","requires_shipping":true,"taxable":true,"featured_image":{"id":36124798713969,"product_id":7828466368625,"position":9,"created_at":"2026-09-11T10:16:37+10:00","updated_at":"2026-09-17T19:33:16+10:00","alt":"Small box wall lantern in white, its slim frame outlining clear glass on three faces","width":1280,"height":1600,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-6235175.jpg?v=1789637596","variant_ids":[44518721060977]},"available":true,"name":"Outdoor IP54 Box Wall Light - Small \/ White","public_title":"Small \/ White","options":["Small","White"],"price":15800,"weight":4000,"compare_at_price":0,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"HV3659W-WHT | Bayside 316 Stainless Steel White Wall Light Small","featured_media":{"alt":"Small box wall lantern in white, its slim frame outlining clear glass on three faces","id":27869454205041,"position":9,"preview_image":{"aspect_ratio":0.8,"height":1600,"width":1280,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-6235175.jpg?v=1789637596"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44518721093745,"title":"Small \/ Black","option1":"Small","option2":"Black","option3":null,"sku":"HVT316WL - 002","requires_shipping":true,"taxable":true,"featured_image":{"id":36124798484593,"product_id":7828466368625,"position":10,"created_at":"2026-09-11T10:16:37+10:00","updated_at":"2026-09-17T19:33:16+10:00","alt":"Outdoor Box Wall Light in black, a small glazed stainless steel lantern with the filament globe on show","width":1280,"height":1600,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-8473013.jpg?v=1789637596","variant_ids":[44518721093745]},"available":true,"name":"Outdoor IP54 Box Wall Light - Small \/ Black","public_title":"Small \/ Black","options":["Small","Black"],"price":15800,"weight":4000,"compare_at_price":0,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"HV3659W-BLK | Bayside 316 Stainless Steel Black Wall Light Small","featured_media":{"alt":"Outdoor Box Wall Light in black, a small glazed stainless steel lantern with the filament globe on show","id":27869453975665,"position":10,"preview_image":{"aspect_ratio":0.8,"height":1600,"width":1280,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-8473013.jpg?v=1789637596"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44518721126513,"title":"Small \/ Stainless Steel","option1":"Small","option2":"Stainless Steel","option3":null,"sku":"HVT316WL - 003","requires_shipping":true,"taxable":true,"featured_image":{"id":36124798615665,"product_id":7828466368625,"position":11,"created_at":"2026-09-11T10:16:37+10:00","updated_at":"2026-09-17T19:34:12+10:00","alt":"Small box wall lantern in brushed 316 stainless steel with clear glass on the face and returns","width":1280,"height":1600,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-4060646.jpg?v=1789637652","variant_ids":[44518721126513]},"available":true,"name":"Outdoor IP54 Box Wall Light - Small \/ Stainless Steel","public_title":"Small \/ Stainless Steel","options":["Small","Stainless Steel"],"price":15800,"weight":4000,"compare_at_price":0,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"HV3659W-SS316 | Bayside 316 Stainless Steel Wall Light Small","featured_media":{"alt":"Small box wall lantern in brushed 316 stainless steel with clear glass on the face and returns","id":27869454106737,"position":11,"preview_image":{"aspect_ratio":0.8,"height":1600,"width":1280,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-4060646.jpg?v=1789637652"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44518721159281,"title":"Large \/ White","option1":"Large","option2":"White","option3":null,"sku":"HVT316WL - 004","requires_shipping":true,"taxable":true,"featured_image":{"id":36124798386289,"product_id":7828466368625,"position":15,"created_at":"2026-09-11T10:16:37+10:00","updated_at":"2026-09-17T19:34:12+10:00","alt":"Large white box wall lantern, 350mm tall, with the lamp holder set low in the frame","width":1280,"height":1600,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-6840609.jpg?v=1789637652","variant_ids":[44518721159281]},"available":true,"name":"Outdoor IP54 Box Wall Light - Large \/ White","public_title":"Large \/ White","options":["Large","White"],"price":23200,"weight":8000,"compare_at_price":0,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"HV3659W-L-WHT | Bayside Large 316 Stainless Steel White Wall Light","featured_media":{"alt":"Large white box wall lantern, 350mm tall, with the lamp holder set low in the frame","id":27869453877361,"position":15,"preview_image":{"aspect_ratio":0.8,"height":1600,"width":1280,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-6840609.jpg?v=1789637652"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44518721192049,"title":"Large \/ Black","option1":"Large","option2":"Black","option3":null,"sku":"HVT316WL - 005","requires_shipping":true,"taxable":true,"featured_image":{"id":36124798222449,"product_id":7828466368625,"position":13,"created_at":"2026-09-11T10:16:37+10:00","updated_at":"2026-09-17T19:34:12+10:00","alt":"Outdoor Box Wall Light in black, the large size, with a taller glazed frame around a filament globe","width":1280,"height":1600,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-9113408.jpg?v=1789637652","variant_ids":[44518721192049]},"available":true,"name":"Outdoor IP54 Box Wall Light - Large \/ Black","public_title":"Large \/ Black","options":["Large","Black"],"price":23200,"weight":8000,"compare_at_price":0,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"HV3659W-L-BLK | Bayside Large 316 Stainless Steel Black Wall Light","featured_media":{"alt":"Outdoor Box Wall Light in black, the large size, with a taller glazed frame around a filament globe","id":27869453713521,"position":13,"preview_image":{"aspect_ratio":0.8,"height":1600,"width":1280,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-9113408.jpg?v=1789637652"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44518721224817,"title":"Large \/ Stainless Steel","option1":"Large","option2":"Stainless Steel","option3":null,"sku":"HVT316WL - 006","requires_shipping":true,"taxable":true,"featured_image":{"id":36124798320753,"product_id":7828466368625,"position":14,"created_at":"2026-09-11T10:16:37+10:00","updated_at":"2026-09-17T19:34:12+10:00","alt":"Large box wall lantern in brushed 316 stainless steel, 350mm tall with clear glazing","width":1280,"height":1600,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-3872082.jpg?v=1789637652","variant_ids":[44518721224817]},"available":true,"name":"Outdoor IP54 Box Wall Light - Large \/ Stainless Steel","public_title":"Large \/ Stainless Steel","options":["Large","Stainless Steel"],"price":23200,"weight":8000,"compare_at_price":0,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"HV3659W-L-SS316 | Bayside Large 316 Stainless Steel Wall Light","featured_media":{"alt":"Large box wall lantern in brushed 316 stainless steel, 350mm tall with clear glazing","id":27869453811825,"position":14,"preview_image":{"aspect_ratio":0.8,"height":1600,"width":1280,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-3872082.jpg?v=1789637652"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":44518721060977,"title":"Small \/ White","option1":"Small","option2":"White","option3":null,"sku":"HVT316WL - 001","requires_shipping":true,"taxable":true,"featured_image":{"id":36124798713969,"product_id":7828466368625,"position":9,"created_at":"2026-09-11T10:16:37+10:00","updated_at":"2026-09-17T19:33:16+10:00","alt":"Small box wall lantern in white, its slim frame outlining clear glass on three faces","width":1280,"height":1600,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-6235175.jpg?v=1789637596","variant_ids":[44518721060977]},"available":true,"name":"Outdoor IP54 Box Wall Light - Small \/ White","public_title":"Small \/ White","options":["Small","White"],"price":15800,"weight":4000,"compare_at_price":0,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"HV3659W-WHT | Bayside 316 Stainless Steel White Wall Light Small","featured_media":{"alt":"Small box wall lantern in white, its slim frame outlining clear glass on three faces","id":27869454205041,"position":9,"preview_image":{"aspect_ratio":0.8,"height":1600,"width":1280,"src":"\/\/lightingcollective.co.nz\/cdn\/shop\/files\/outdoor-ip54-box-wall-light-lighting-collective-6235175.jpg?v=1789637596"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

The Outdoor Box Wall Light is a rectangular lantern built from 316 stainless steel, with a clear glass diffuser. The lamp holder rises from a small plinth in the base of the box, leaving the globe on open display behind the glass rather than hidden behind a diffuser.

Light passes through three sides and spills forward as well as up and down the wall, which gives a soft light either side of an entry door, along a verandah, or at intervals down a boundary fence. Marine grade stainless underneath the finish makes it a sound choice for coastal areas.

Rectangular box lantern in 316 marine grade stainless steel
Clear glass across the face and both side returns
Exposed lamp holder mounted on a raised plinth in the base
Slim welded frame that keeps the metal to a thin outline
Surface mounted, sitting flat against the wall on a solid back plate
Suited to coastal sites where salt air attacks coated mild steel

SKU: HVT316WL - 001

Height	Small \| 235mm Large \| 350mm
Width	Small \| 113mm Large \| 160mm
Protrusion	Small \| 110mm Large \| 150mm
Light Source	1 x E27 LED Globe \| Included
Max Wattage	Small \| 40W LED Large \| 40W LED
Supplied Globe Wattage	Small \| 8W Large \| 4W
Voltage	240V
Supplied Globe Lumens	Small \| 800lm Large \| 400lm
Supplied Globe Colour Temperature	2700K
CRI Rating	CRI>80
Dimmable	Yes - TRIAC
Beam Angle	180°
Materials	Glass & Stainless Steel
Finishes / Colours	Black, Stainless Steel or White
IP Rating	IP54
Class	Class I \| Earth Required
Application	Outdoor

Warranty	3 Years
