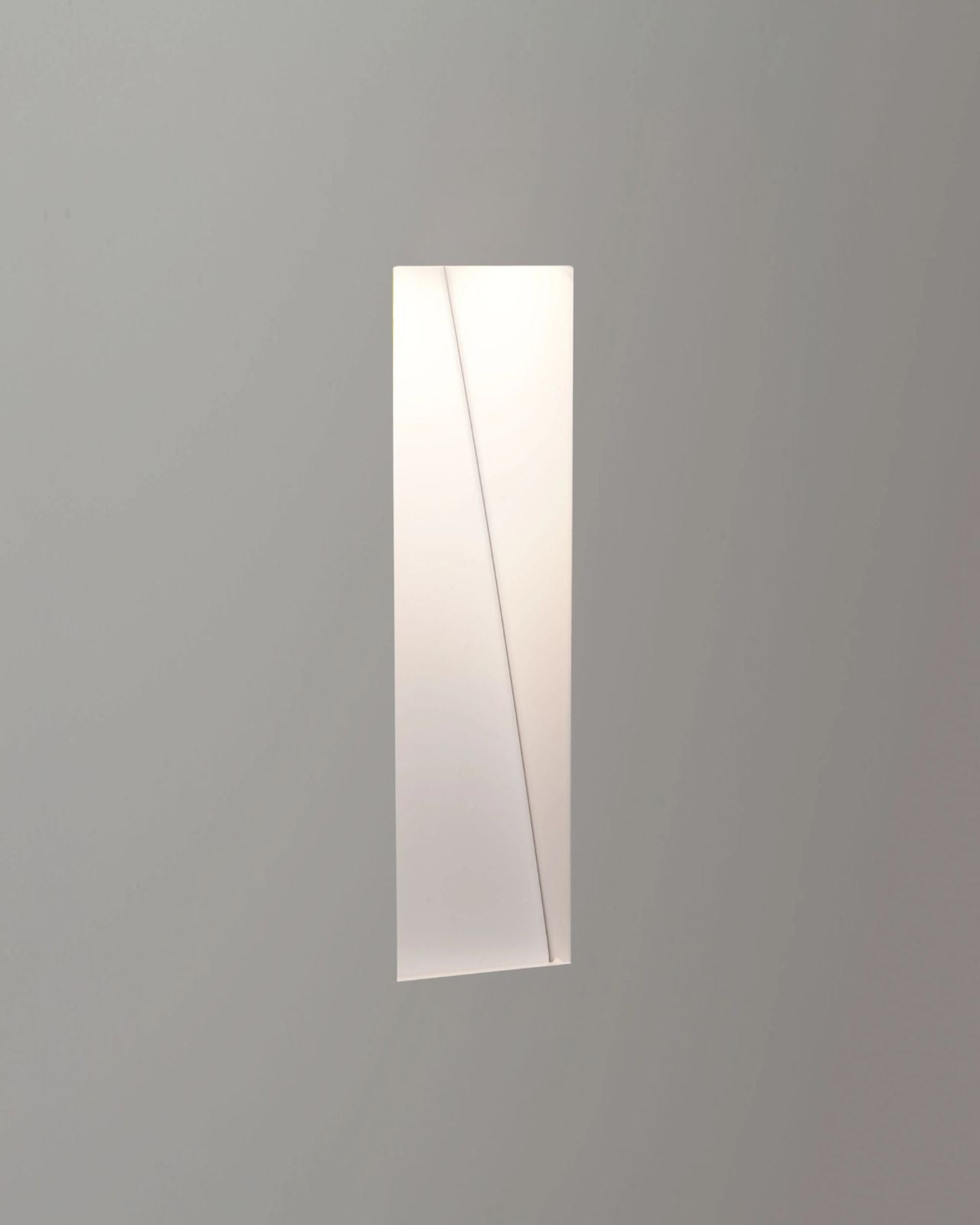

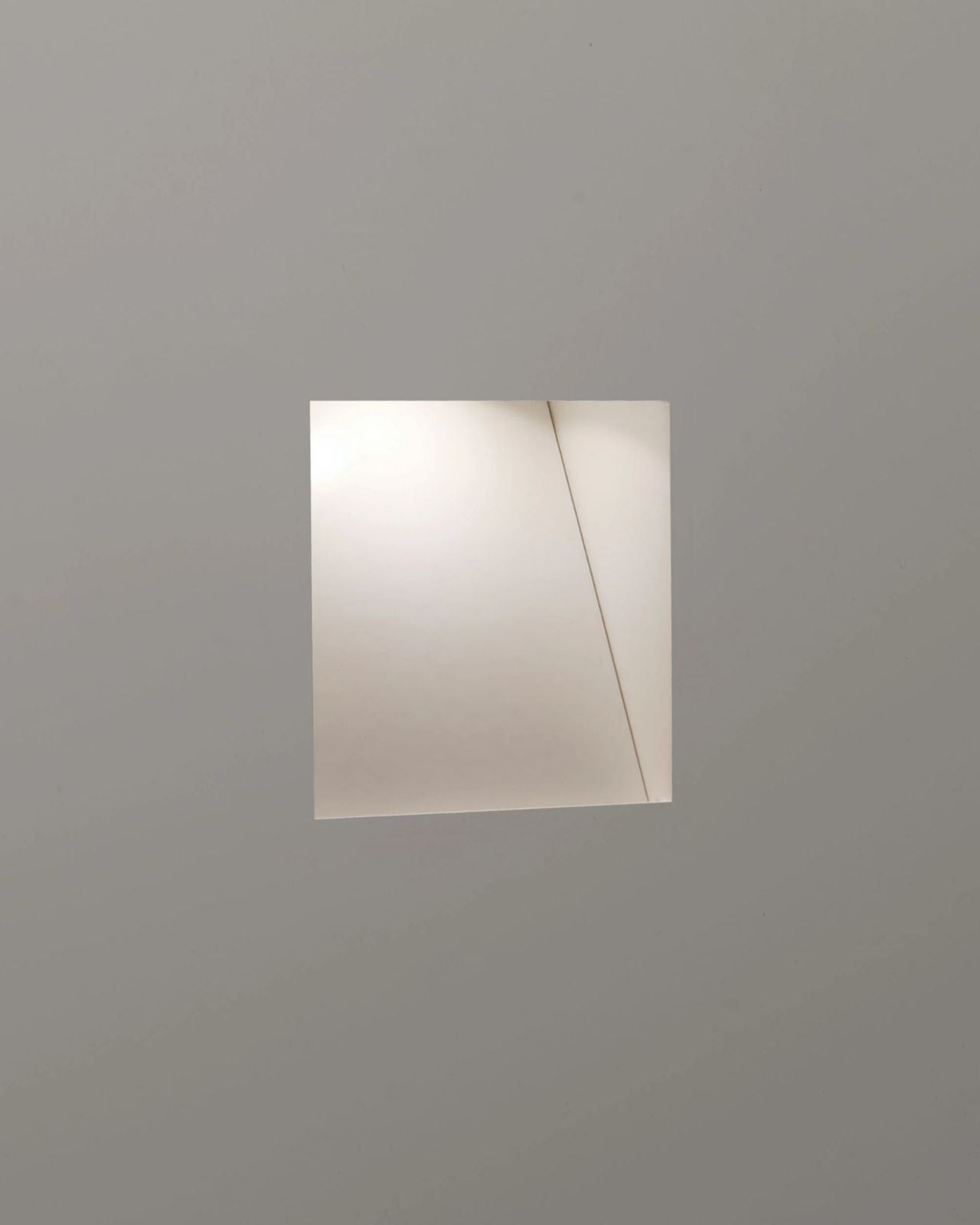

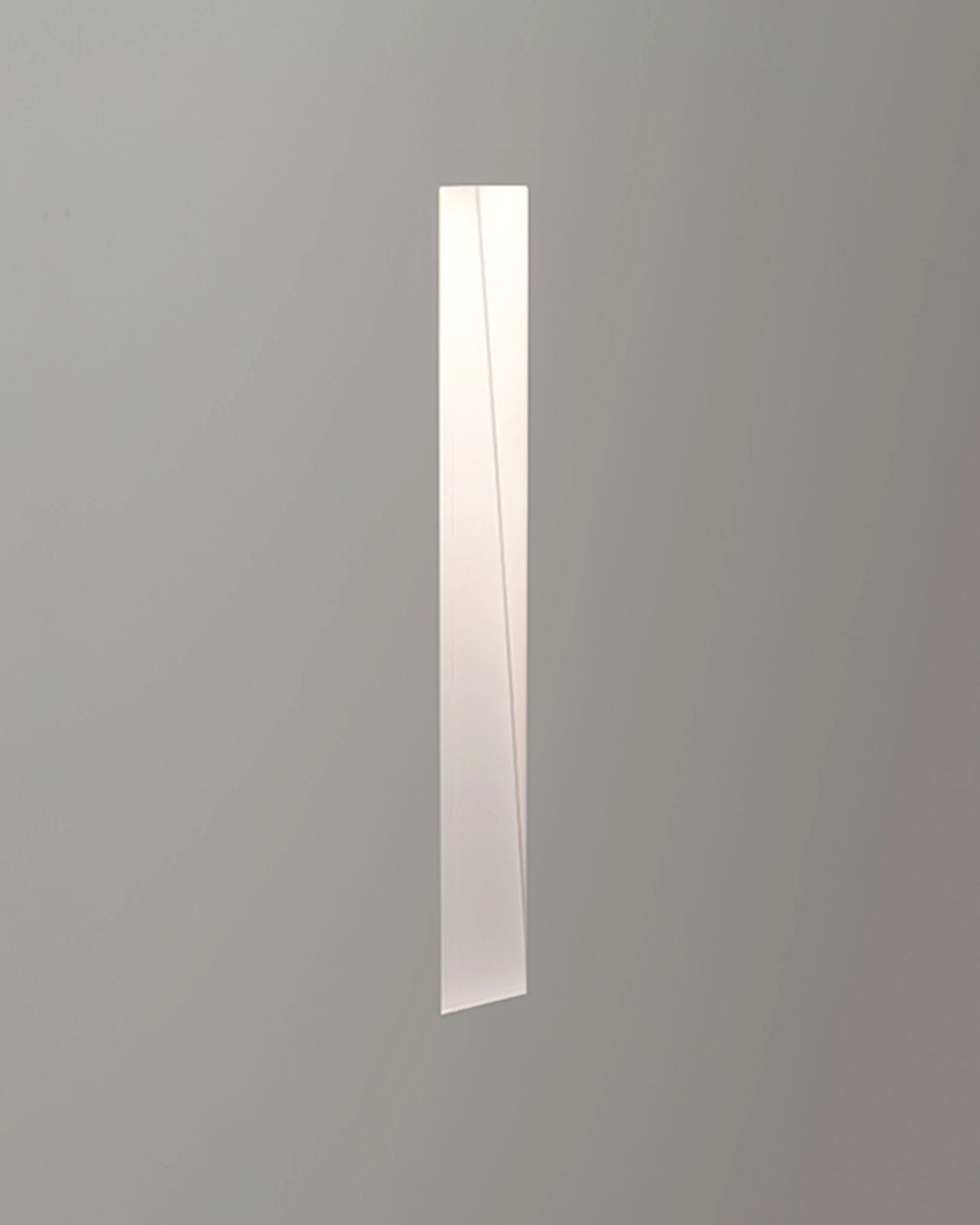

Trimless LED Step Light
The Trimless LED Step Light delivers a refined architectural lighting solution for contemporary homes. This understated recessed fitting blends into plaster walls to create a completely seamless appearance. The deeply recessed design cleverly conceals the integrated LED light source. This considered placement directs a gentle wash of light downwards to enhance safety and visual flow.
It is ideal for illuminating hallways and staircases. The fixture creates an inviting atmosphere when used for subtle step washing or ambient wayfinding. This versatile piece complements minimalist, modern, and architectural interior styles. It functions as a purposeful addition to dry living spaces, circulation routes or dressing rooms.
Please note: this plaster-in fitting must be installed before the final plaster skim layer. A remote constant current driver is required and sold separately.
- Integrated LED light source
- Seamless plaster-in recessed design
- Soft glare-free downward illumination
- Suitable for modern staircases and hallways
| Width | Small Square | 33mm Small Rectangular | 35mm Large Square | 65mm Large Rectangular | 25mm |
|---|---|
| Height | Small Square | 33mm Small Rectangular | 120mm Large Square | 65mm Large Rectangular | 200mm |

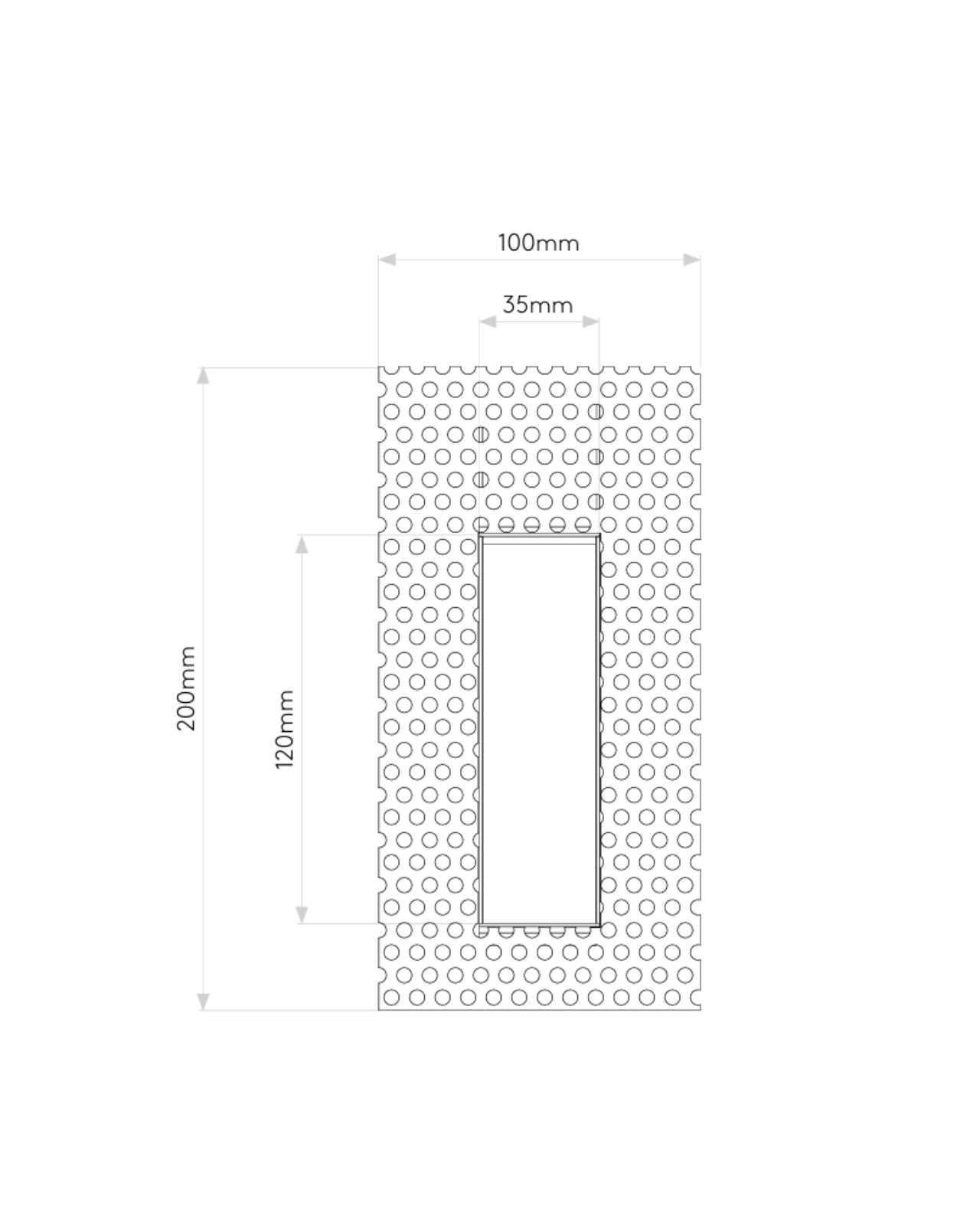

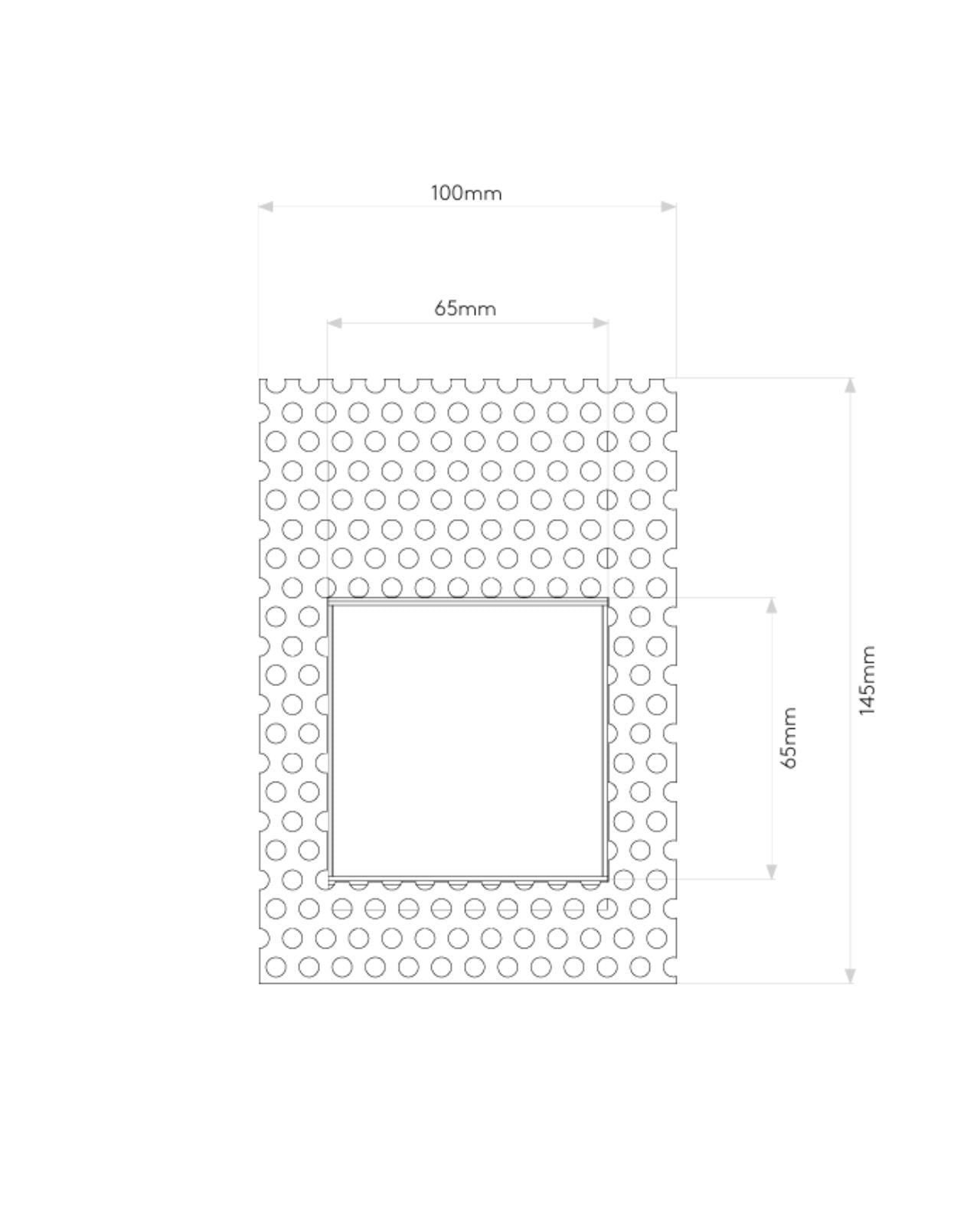

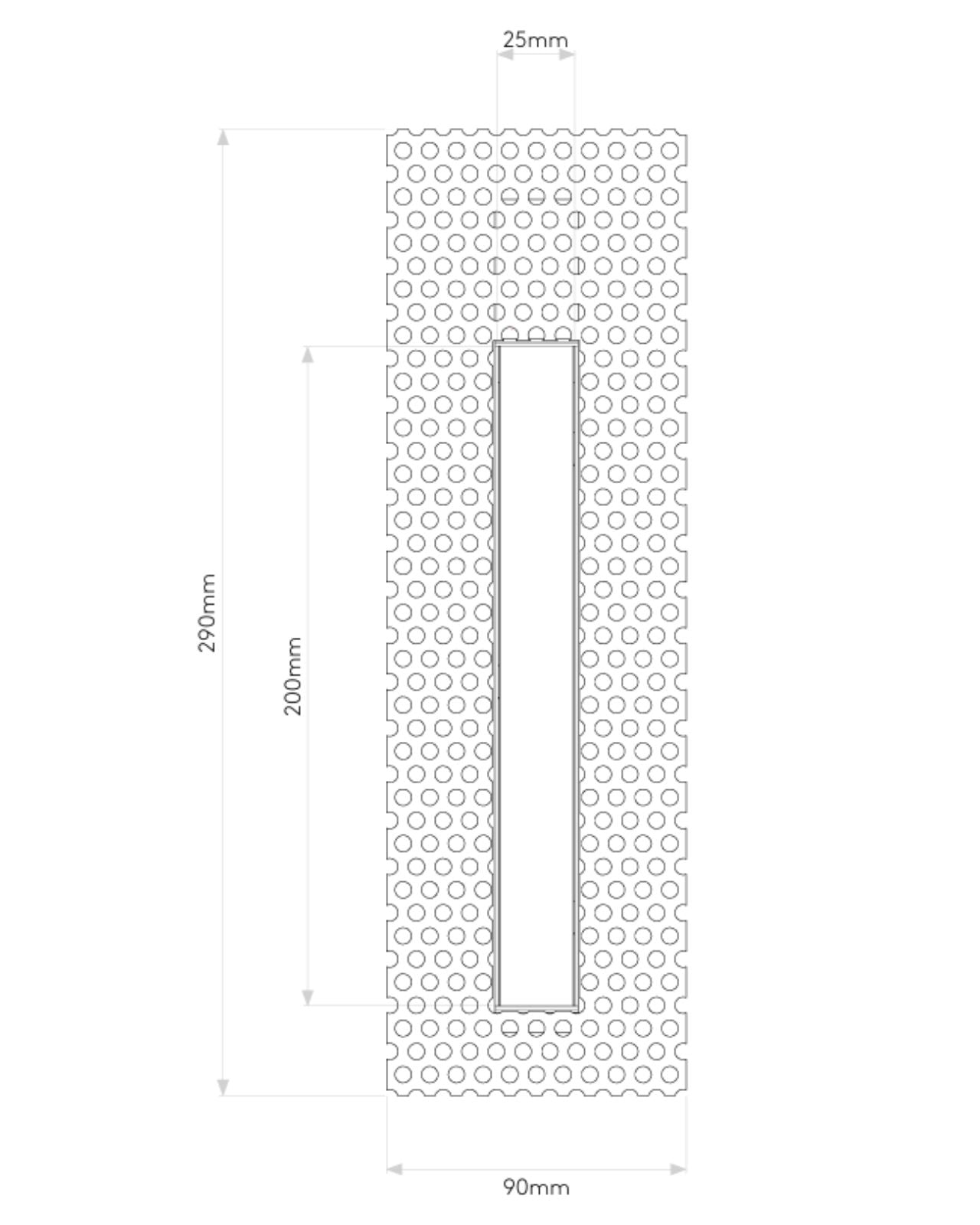

| Cut Out Dimensions | Small Square | 80mm x 40mm Small Rectangular | 170mm x 40mm Large Square | 115mm x 67mm Large Rectangular | 260mm x 30mm |
| Weight | Small Square | 0.36kg Small Rectangular | 0.42kg Large Square | 0.38kg Large Rectangular | 0.66kg |
| Light Source | Integrated LED |
| Wattage | Small Square | 1W Small Rectangular | 2W Large Square | 2W Large Rectangular | 2W |
| Colour Temperature | 2700K | 3000K |
| Lumens | 2700K Small Square | 29lm Small Rectangular | 76lm Large Square | 70lm Large Rectangular | 46lm 3000K Small Square | 21.8lm Small Rectangular | 70lm Large Square | 80lm Large Rectangular | 56lm |
| Required Driver | Small Square | Constant Current 350mA | Not Included Small Rectangular | Constant Current 700mA | Not Included Large Square | Constant Current 700mA | Not Included Large Rectangular | Constant Current 700mA | Not Included |
| Dimmable | Yes - Driver Dependent |
| Material | Steel |
| Finish | Matte White |
| IP Rating | IP20 |
| Application | Interior |
| Warranty | 3 Years |
|---|
